FUNCTIONALITY
The point Franklin lightning conductor is a protection element. It's function is to capture lightnings (atmospheric discharges) and transfer it's energy to earth in a safe way without affecting the protected structure.

APLICATIONS

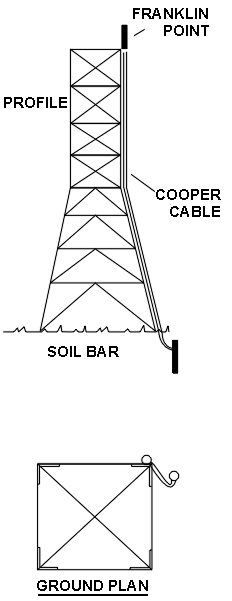

On communication towers, buildings, houses, factories, hangars    and any other edification and for construction subject to atmospheric discharges.

CONNECTION
For an effective ground connection, it is made through 2 screws that join correctly the inside of the lightning conductor it is recommended the use of uncovered copper wire Nº 2/0 or 3/0 (of 19 threads).

WEIGHT
Approximately 1.5 Kilograms.

FIXTURE
Comes to be screwed directly to a ¾" conductor tube properly fixed.
